Dispensing

At Integra, we manufacture our adhesives in house, we designed and manufacture our cartridges, so it made sense that we design our own dispensing systems as well. We want to create the best and easiest system for fabricators to achieve seamless results, consistently. We worked with fabricators and our team of adhesive professionals to develop durable, high-end dispensers and mixing tips which we continue to iterate and improve upon.

Dispensers

100ml Dispenser

When we developed the 100ml cartridge, we wanted to create a system that anyone could use with common equipment. We decided that a caulking gun would be the best choice since they can be purchased at any tool store, and most shops have dozens readily available. However we found that most caulking guns just weren’t up to snuff. They weren’t designed to dispense dual-component adhesives. They are flimsy and lacking features, so we designed out own.

Features Include
  • Compatible with all standard 10oz. Silicone and Caulking cartridges
  • Non-Drip Mechanism releases pressure between trigger actions
  • 20:1 mechanical advantage reduces operator fatigue
  • Sturdy steel frame and push rod don’t flex or bend during use
  • Black powder-coated finish increases durability
  • Rubber dipped handle increases grip and comfort
  • Wear compensation screw increases product life

250ml Dispenser

Our 250ml Dispensing gun was designed to raise the bar for the industry when it came to dispensing options for 10:1 guns. We designed the dispenser to be universal to make it easier for those those transitioning to the Integra system, or who use multiple systems, or those who use other 10:1 adhesives, but simply want a quality dispenser.

Features Include
  • Compatible with Mixpac 250ml cartridges systems used by many other adhesive brands
  • Non-Drip Mechanism releases pressure between trigger actions
  • 18:1 mechanical advantage reduces operator fatigue
  • Sturdy steel frame doesn’t flex or bend during use
  • Steel push rods braced with reinforced plate to prevent off-ratio mixing
  • Black powder-coated finish increases durability
  • Rubber dipped handle increases grip and comfort
  • Extremely durable and easy to maintain
  • Wear compensation screw increases product life

500ml Dispenser

Our 500ml Dispenser was built on the foundation of the successful 250ml Dispenser. This dispenser features an increased mechanical advantage, so the higher volume cartridges are just as easy to dispense, but not so high as to cause over-pressurizing of the cartridge. Will accommodate many of the 400ml & 470ml cartridges on the market.

Features Include
  • Compatible with many other 400ml/470ml cartridges
  • Non-Drip Mechanism releases pressure between trigger actions
  • 25:1 mechanical advantage reduces operator fatigue
  • Sturdy steel frame doesn’t flex or bend during use
  • Steel push rods braced with reinforced plate to prevent off-ratio mixing
  • Black powder-coated finish increases durability
  • Rubber dipped handle increases grip and comfort
  • Extremely durable and easy to maintain
  • Wear compensation screw increases product life

200ml Dispenser

Our 200ml Dispenser is compatible with most standard 1:1 200ml cartridges as well as 2:1 200ml cartridges. It features all the great benefits seen in our other dispensers.

Features Include
  • Compatible with many other 400ml/470ml cartridges
  • Non-Drip Mechanism releases pressure between trigger actions
  • 18:1 mechanical advantage reduces operator fatigue
  • Sturdy steel frame doesn’t flex or bend during use
  • Steel push rods braced with reinforced plate to prevent off-ratio mixing
  • Black powder-coated finish increases durability
  • Rubber dipped handle increases grip and comfort
  • Extremely durable and easy to maintain
  • Wear compensation screw increases product life

Newborn Pneumatic Dispenser

Integra endorses the Newborn VR400A83 Pneumatic Dispenser as the premiere Pneumatic dispenser on the market. It’s unique design makes it compatible with both our 250ml and 500ml cartirdges. This high quality dispenser is also compatible with many 1:1, 2:1, 4:1 and 10:1 cartridges on the market.

Features Include
  • For Use with 250ml & 500ml Cartridges, also fits 200ml/400ml/470ml cartridges along with many others!
  • Nominal Thrust 490 lbs. @ 100 psi/2.5″ cylinder
  • Easily Converts in Just Seconds with Snap In/Snap Out Push Disks to Mix Ratios of 1:1, 2:1, 4:1, and 10:1
  • Slide In/Side Load
  • Adjustable Heavy Duty Aluminum Air Regulator
  • Air Dump Valve Stops Flow Instantly
  • Reverse Air Button
  • Quick Disconnect Nipple Included
  • Replacement Parts Available

Mixing Tips

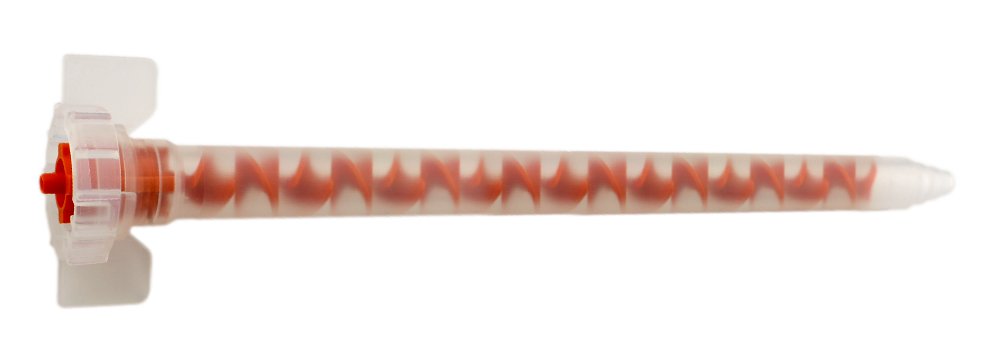

X-Stream Static Mixer

The X-Stream Mixing Tip features a bayonet fitting, so you don’t need to worry about saving a retaining nut for holding your tip in place. The bayonet fitting makes for fast, easy attaching and removal. The X-Stream separates the two components from the nozzle of the cartridge, eliminating cross-contamination. Its unique design divides the activator into two separate streams the adhesive into 4 streams to ensure excellent mixing throughout. This allowed us to make the tip smaller, and vastly reduce the amount of wasted material left stuck in the tip housing.

X-Stream Large Static Mixer

The X-Stream Large Mixing Tip features all the great benefits of the standard X-Stream Mixing Tip, but has a larger tip body for high-viscosity materials. This tip was designed to be used exclusively with the Rodding Bonder RD50, which is a higher viscosity product. To reduce hand fatigue, we developed this mixing tip.

5″ Threaded Mixing Tip

A disposable mixer for our 200ml Substrate Bonder SB100 cartridges. Depending on the application in question, the stepped outlet can be adjusted by cutting. The mixer has a single lead 7/8″ x 9 thread and can be screwed directly onto the cartridge without the need for a separate retaining nut.
